Part Number: CBM-11012-KIT

Price: $424.99
Quantity:

CBM MOTORSPORTS™ LS2/LS7/LSX COMPLETE IGNITION COIL RELOCATION KIT Product Description:

Overview

CBM Motorsports LS complete ignition coil relocation kits allow you to move the ignition coils factory location to anywhere best suited for your application.

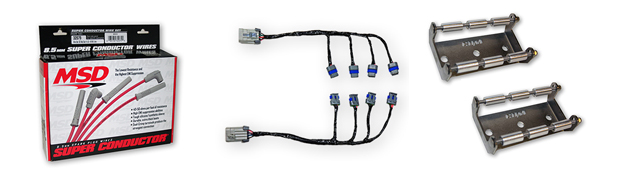

Included in kit:

  • MSD 8.5mm Super Conductor universal wire set. #MSD-32079
  • CBM Motorsports™ ignition coil relocation brackets. #CBM-11012-KIT-LS7
  • CBM Motorsports™ ignition coil jumpers. #CBM-COIL-JUMPER-LS2
  • Kits DO NOT come with ignition coils.


MSD
Ignition wire set.
Red, Multi-Angle Boots, Chevy, Universal Set

MSD's 8.5mm Super Conductor wire sets have a special helically wound core that has just 40-50 ohms of resistance per foot--but with an RFI suppression equal to a 1,500 ohm wire. In fact, each foot of finished wire features 40 ft. of tightly wound copper for superior conductivity.

A tough, 8.5mm synthetic/silicone jacket over an extra-heavy glass braid and dielectric insulator keeps the current guided to the plugs. Underneath the high-temperature boots, dual crimp stainless steel terminals feature snap-locks to ensure a secure fit. MSD's 8.5mm Super Conductor wire sets come available in custom or universal-fit applications.


CBM MOTORSPORTS™
Custom ignition coil relocation brackets for LS style ignition coils.

This pair of brackets and hardware kit is for LS2/LS7 and LSX ignition coils. The part number listed on the coil should be 12570616, 12611424, or 1257061. These brackets are designed for engines that run sheet metal or billet valve covers that do not have provisions for ignition coils.

The brackets are laser cut from 1/8" grade 304 stainless steel for an exact fit and extreme durability. The spacers are CNC cut from 6061-T6 aircraft grade aluminum. The brackets can be powder coated, chromed, or left natural as they will not rust. All components are made here in the USA and have exceptional quality.

These brackets are designed to hold stock LS2/LS7 and LSX ignition coils only. They will not fit LS1, LS6, MSD, or truck style ignition coils. Most stock LS3 Camaros, Corvettes, and crate motors run this ignition coil. Some run the 12573190 LS7 ignition coil. These are UNIVERSAL brackets. We have customers that mount them on a frame rail, fire wall, under the header, on the back of the head and so on. Every application is different.


CBM MOTORSPORTS™
Custom ignition coil relocation wiring jumper / harness for LS style engines.

This pair of ignition coil relocation wiring jumpers / harness`s are for LS2/LS3/LS7/LS9 ignition coils. Jumpers are professionally constructed from brand new GM Delphi connectors and TXL (Polyethylene Cross Linked) high temperature wire to GM specifications. The part number listed on the coil should be 12570616, 12611424, or 1257061.

Kits DO NOT come with ignition coils.


Specifications

Brand: CBM Motorsports
Part Number: CBM-11012-Kit
Other Part Number: 11012-Kit
Part Type: Ignition Coil Relocation
Coil Style: Ignition Coil pack
Coil Shape: Cylinder
Coil Bracket Material: Stainless Steel
Coil Bracket Finish: Natural
Coil Spacer Material: Billet aluminum
Coil Spacer Finish: Natural
Hardware Included:
Yes
Spark Plug Boot Ends: Eight multi-angle
Spark Plug Boot Color: Gray
Spark Plug Boot Material: Silicone
Wire Color: Red
Wire Diameter (mm): 8.50mm
RFI Suppression: Yes
Conductor Style: Spiral core
Spark Plug Wire Resistance: 50 ohms/ft.
Jumper Connectors: GM Delphi
Jumper Wiring: TXL (Polyethylene Cross Linked)
Quantity: Sold as a kit.
In-Store Pickup: Colton, CA, USA

Application

These brackets are designed to hold stock LS2/LS7 and LSX ignition coils only. They will not fit LS1, LS6, MSD, or truck style ignition coils. Most stock LS3 Camaros, Corvettes, and crate motors run this ignition coil. Some run the 12573190 LS7 ignition coil. These are UNIVERSAL brackets. We have customers that mount them on a frame rail, fire wall, under the header, on the back of the head and so on. Every application is different.

This pair of ignition coil relocation wiring jumpers / harness`s are for LS2/LS3/LS7/LS9 ignition coils. Jumpers are professionally constructed from brand new GM Delphi connectors and TXL (Polyethylene Cross Linked) high temperature wire to GM specifications. The part number listed on the ignition coil should be 12570616, 12611424, or 1257061.

Suggested Parts

Warranty

CBM Motorsports™ products are warranted to be free from defects in material and workmanship for a period of 90 days from the date of purchase. CBM Motorsports™ electronic components and products are warranted to be free from defects in material and workmanship for a period of 30 days from the date of purchase. If the any part does not meet the limited warranty criteria an RMA number will have to be initiated to set up an exchange or refund.

The part must be returned to CBM with an RMA number assigned to it, and if it is in acceptable condition, CBM will issue credit directly to the customer. In addition, CBM Motorsports™  limited warranty specifically does not apply to products which have been modified or altered in any way, subjected to adverse conditions such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion or faulty repair, or used in racing activities or competitive  applications other than those recommended by CBM Motorsports™ . This warranty does not warrant and disclaims all liability for products used in racing activities and/or applications, other than those specifically recommended by CBM Motorsports™.
